Generation triggers

What this page is — rules that create a document automatically when something happens elsewhere in Orbit: an order placed or paid, a deal won, a form submitted.

What it is for — so the documents that follow predictably from an event — the invoice after payment, the agreement after a won deal — exist without anybody remembering to make them.

The problem it solves — documents that should follow automatically from an event depend on someone remembering to create them.

Route: /org/settings?tab=papers → Generation triggers · Permission: Configure triggers/webhooks/auto-generation rules..

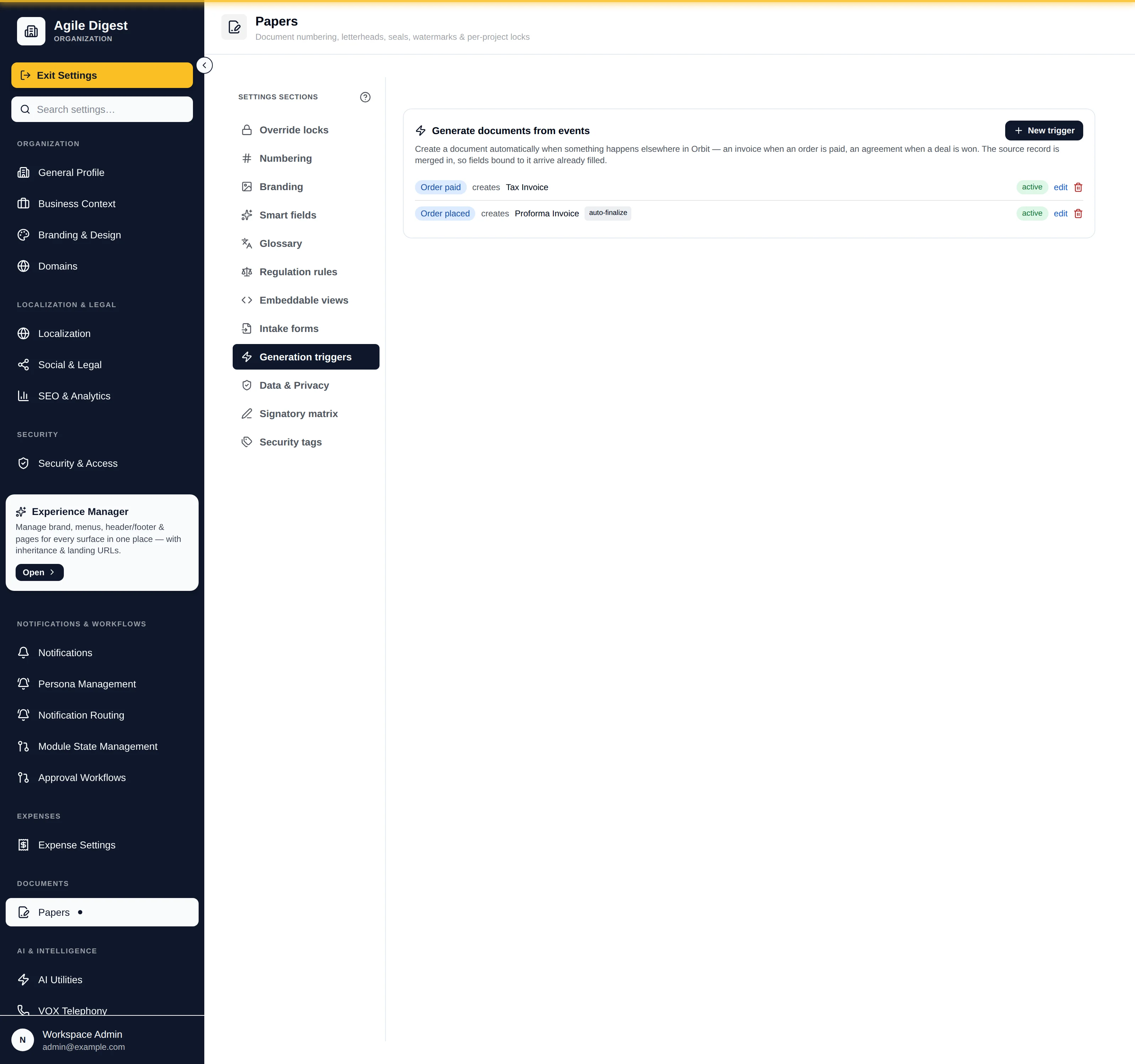

Figure 1 — Each trigger joins an event to a document type.

---

1. What it is

A trigger joins one event to one document type. The events are a curated list — a typed event name that is never published would produce a trigger that silently never fires.

Event	Published when	Default source map	Title example
Order paid order.paid	A customer order is marked paid	order_id ← order.id	Tax Invoice for {{order.number}}
Order placed order.placed	An order is created, not yet paid	order_id ← order.id	Proforma Invoice for {{order.number}}
Deal won deal.won	A CRM deal moves to won	deal_id ← deal.id, contact_id ← contact_id	Agreement — {{deal.title}}
Intake form submitted form.submitted	A marketing or intake form is submitted	form_id, submission_id	Request from {{event.fields.customer_name}}

How an event becomes a document:

Step	What happens
1	The publishing module writes the event to the Papers outbox, in its own transaction
2	The outbox worker picks it up — about every minute
3	Each active trigger for that event creates a document from the type's published version, in the event's project
4	The source map links the document to the record, so merge sources like order.* and deal.* fill fields
5	Optionally, the document is submitted and/or finalized automatically
6	Redelivery of the same event does not generate a second document

---

2. Why you would use it

• The late documents stop being late. Invoices after payment and agreements after a won deal are the ones that wait on someone noticing.
• Data flows in, not typed in. The order or deal fills the document through merge sources.
• Fully hands-off, if you want. With auto-finalize an invoice is numbered and sealed the moment payment lands.
• Safe under retries. The outbox is at-least-once; generation is idempotent.

---

3. Step by step

1. + Trigger → pick the Event.
2. Pick the Document type — only active, published types are offered.
3. Write a Title template, starting from the example.
4. Keep the default Source map unless you know the payload.
5. Choose Auto-submit and Auto-finalize.
6. Save and leave it active. Cause the event once in a test project and check the documents list.

---

4. Field reference

Field	Rules	Refusal
Event	One of the four	event_type is required
Document type	In scope, active, published	type_id does not reference a document type in this scope · at generation: target type has no published version
Title template	Tokens from the event payload	—
Source map	Document reference key → payload path	source_map must be a JSON object of source_ref key -> payload path
Auto-submit	Submits the generated draft	Subject to the lifecycle's rules
Auto-finalize	Seals the generated document	Numbered from the type's sequence; a failure is recorded, and the draft remains
Active	On / off	—

A source map key the payload does not carry fills nothing

The panel offers only keys each publisher actually sends. Editing the map to a path that is not in the payload produces documents whose merge fields are silently empty.

---

5. Worked example

A storefront finance team wants a tax invoice for every paid order.

Setting	Value
Event	Order paid
Document type	Tax Invoice
Title template	Tax Invoice for {{order.number}}
Source map	order_id ← order.id (default)
Auto-finalize	On

Order SO-10429 is paid at 14:02. At about 14:03 the list shows Tax Invoice for SO-10429, already finalized: number INV/2026-27/00118, sealed PDF, line items and customer filled from the order via order.* merge sources.

The payment gateway retries the webhook at 14:05. No second invoice appears.

A month later someone retires the Tax Invoice type while drafting a new one. Paid orders now generate nothing — target type has no published version in the outbox audit — until they publish the replacement and point the trigger at it.

---

6. The admin contract

Must be true	Where	What breaks without it
The role holds Configure triggers/webhooks/auto-generation rules.	Role editor	The section is missing
The type is active and published	Type Designer	Generation fails, recorded only in the outbox audit
The type's fields use matching merge sources	Fields	Documents arrive empty
A numbering sequence is bound, for auto-finalize	Behaviour	Invoices seal unnumbered
The outbox worker job is enabled	Job monitor	Events queue and nothing is generated

---

7. Downstream

When…	Then
The event fires	A document appears in the event's project
Auto-finalize is on	It is numbered and sealed at once
You deactivate a trigger	Future events generate nothing; past documents stay

---

8. Don't confuse this with…

Intake forms	Form-specific bridges with a field map. Both can fire on one submission
Webhooks	Papers telling other systems about documents
Capture inbox	Files arriving from outside

---

9. Troubleshooting

Symptom	Cause
No document was generated	Trigger inactive, type unpublished, outbox worker off, or the event happened in another project
Fields are empty	The type's fields lack matching merge sources, or the source map was edited
Two documents per form submission	A trigger and an intake bridge both listen
An auto-finalized document has no number	The type binds no sequence
A retried event created nothing new	Idempotency — expected

---

Related

• Intake forms
• API and webhooks
