Visual Builder Mode
Mode tab: Builder — the studio's default, if you hold Build Public Pages.

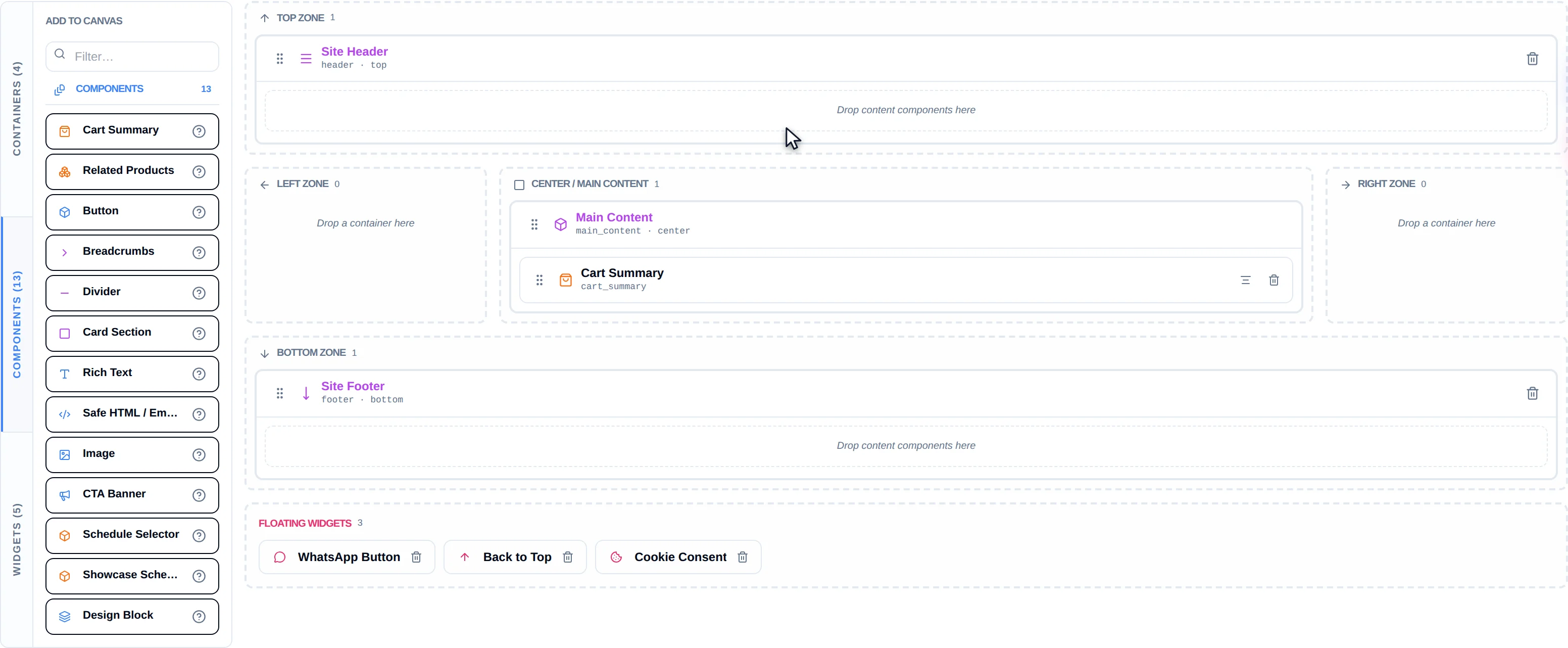

Builder mode is a three-panel workspace: the palette on the left, the canvas in the middle, and — once you select something — the inspector on the right.
1. Above the canvas
Three controls sit above the builder and apply to the whole page.

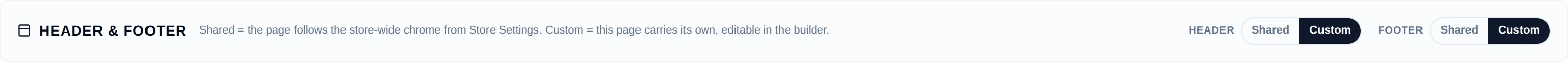

Header & footer chrome
| Mode | What it means | Use it for |
|---|---|---|
| Shared (default) | The page follows the store-wide chrome from Store Settings / Experience Manager. It carries no header container of its own. | Almost every page — home, category, product, account, help, blog. Change the global menu once and every Shared page follows. |
| Custom | The page detaches from the global chrome and carries its own header/footer containers on the canvas. | Campaign landings, funnels, distraction-free checkouts. |
The bar states the rule in situ: "Shared = the page follows the store-wide chrome from Store Settings. Custom = this page carries its own, editable in the builder."
Adding custom chrome stops the page following the shared version — a toast says so and reminds you to Save Draft to keep it. Restoring Shared discards the custom containers. Global menu edits will not reach a Custom page.
Custom display name
An optional per-language override for the page's display name. Leave it empty and the page's own name is used.

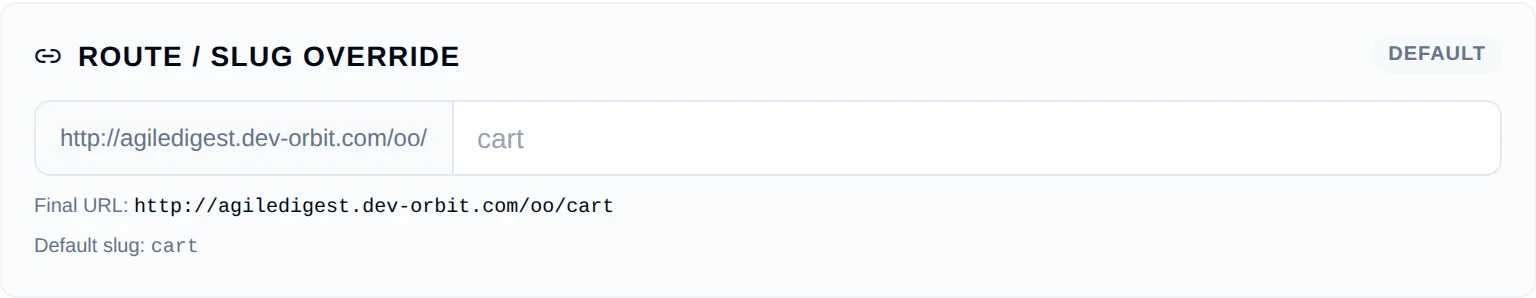

Route / slug override
The card shows the fixed URL prefix, an editable slug, and underneath: Final URL and Default slug. A DEFAULT badge in the corner means nothing is overridden.
Some system pages are served by routes with a path parameter — a product detail page, an article page. Setting a slug override on one of those stops its route pattern matching and the public page starts returning 404. Leave those on their default slug.

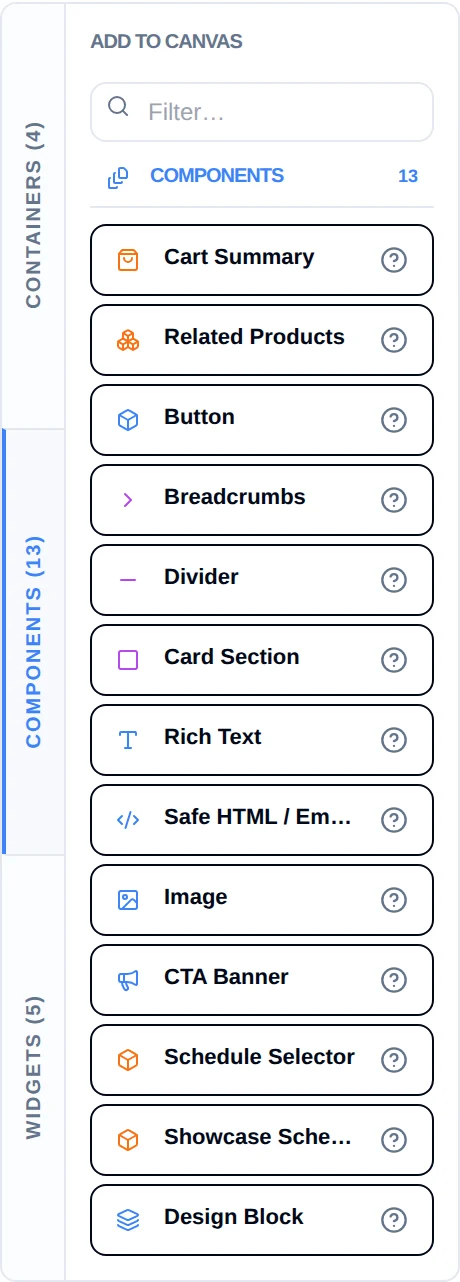

2. The palette
Headed ADD TO CANVAS, with a vertical rail of three groups down the left edge and a live count on each:
| Group | What it holds |
|---|---|
| Containers | The structural blocks that hold components — main content, header, footer, column rows. |
| Components | The content blocks — Rich Text, Image, Button, Cart Summary, CTA Banner, Divider… |
| Widgets | Floating overlay blocks, pinned to a screen corner. |
Filter… searches by name, kind or category across all three groups.
Every row has a ? button opening that block's own help.
The counts are not fixed. A page's page type decides which blocks are offered — a CART page gets Cart Summary and Related Products; a blog page gets different ones. If a block you expect is missing, the page type is why. A page with no page type set shows an amber warning and no palette at all, and a platform admin has to assign one in /admin/customerpages.

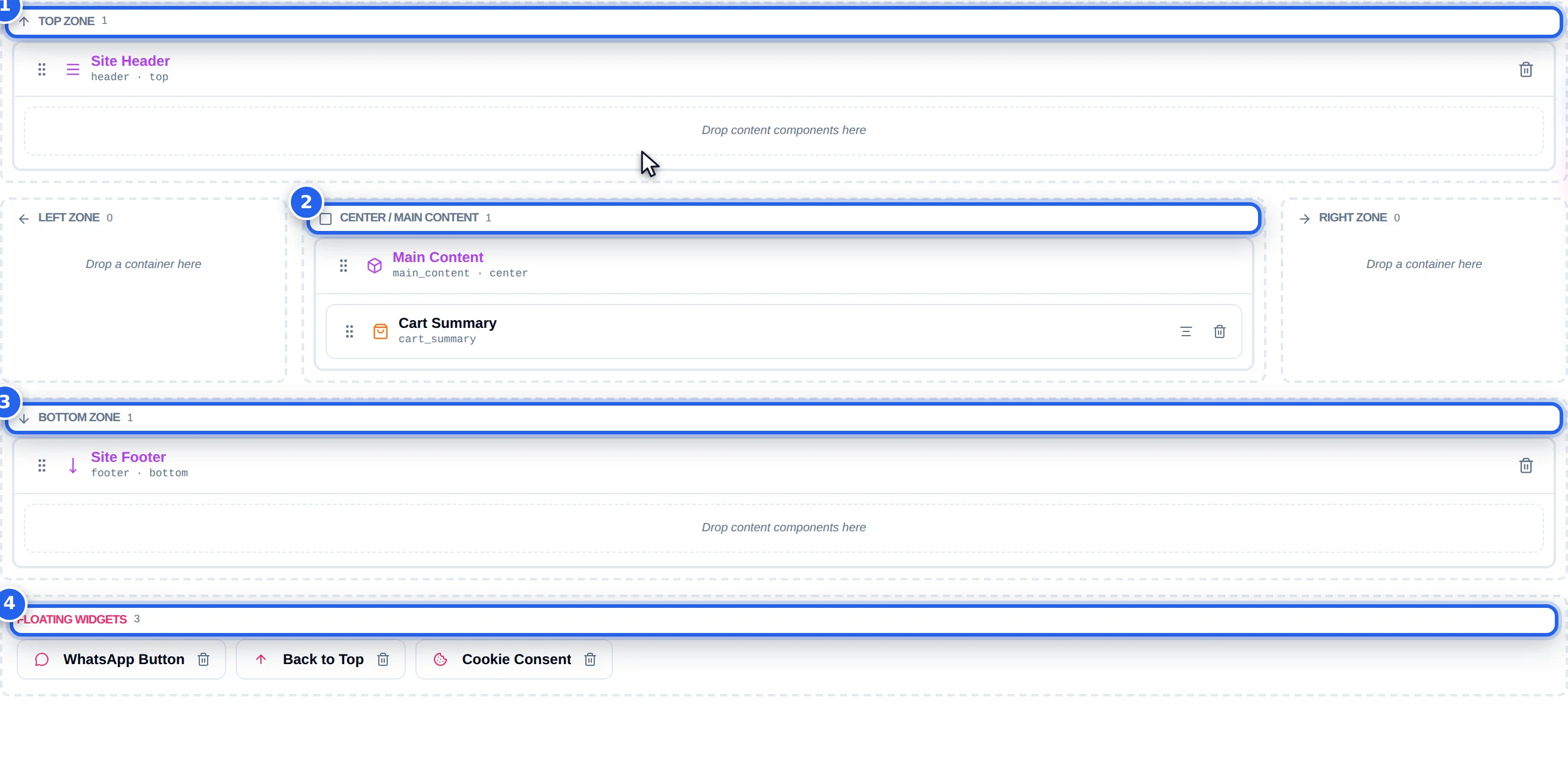

3. The canvas — zones, containers, components
The canvas is not a flat list of blocks. It has three levels:
| # | Zone | Holds |
|---|---|---|
| 1 | Top zone | The header container. |
| — | Left zone / Right zone | Optional sidebars. Empty by default: "Drop a container here." |
| 2 | Center / Main content | The page's real content. |
| 3 | Bottom zone | The footer container. |
| 4 | Floating widgets | Corner-pinned overlays — WhatsApp button, back-to-top, cookie consent. Listed as chips, not stacked in a zone. |
Each zone's heading shows a count of the containers in it, so an empty region is obvious at a glance.
Containers accept components; zones accept containers. Dropping a component straight into an empty zone does not work — that is what the "Drop a container here" versus "Drop content components here" hints are telling you.
Row controls
Every block row carries, left to right: a drag handle (⠿) for reordering, the block's name and its code (cart_summary, header · top), and a bin to remove it. Some components add a settings icon.
Click anywhere on a row to select it — that is what opens the inspector.
Fullscreen in the section header expands the builder to the whole window.
An empty page shows a "New page — start from a template" prompt: pick a ready-made starter layout, or scaffold a blank layout with just the standard chrome. Applying a template brings sample data with it — the toast tells you to click each block and fill in your own content, then Save Draft.

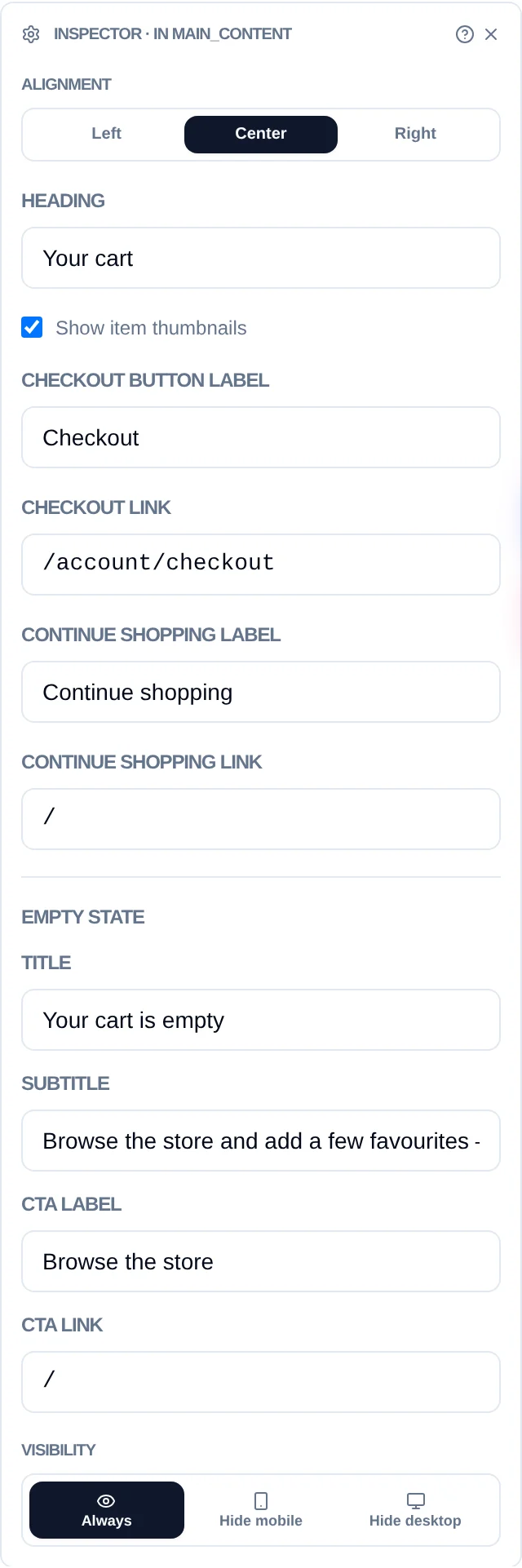

4. The inspector
Select a block and a third column opens, headed INSPECTOR · IN <CONTAINER> so you always know where the block lives. It has three parts, in this order:
Alignment — Left · Center · Right. On a block inside a header, footer or bar this is joined by a Width control.
The block's own settings — whatever that component exposes. A Cart Summary offers Heading, Show item thumbnails, checkout button label and link, continue-shopping label and link, and a whole empty-state group (title, subtitle, CTA label, CTA link). A Rich Text block offers something completely different. This section is the component's own contract, which is what the component guides document.
Visibility — three choices, not per-breakpoint switches:
| Option | Effect |
|---|---|
| Always (default) | Rendered everywhere. |
| Hide mobile | Hidden on small screens. |
| Hide desktop | Hidden on large screens. |
Visibility is a single three-way choice — there is no separate tablet setting. Nor does the inspector carry colour swatches, container-width dropdowns or padding sliders: page-wide look comes from Brand Identity, and per-block appearance from whatever fields that component itself exposes.
Clicking empty canvas space clears the selection and closes the inspector.
