Order printing
Route: /org/ecom/storesettings?tab=printing · Permission: Manage Store Settings
1. What this section covers
The default paper an order prints on, and what the fulfilment station is called.
Small, and easy to get wrong in a way nobody notices until a busy service: a receipt formatted for A4 sent to a thermal roll wastes the roll, and one formatted for 58mm on A4 prints a stripe.
2. Where it reaches

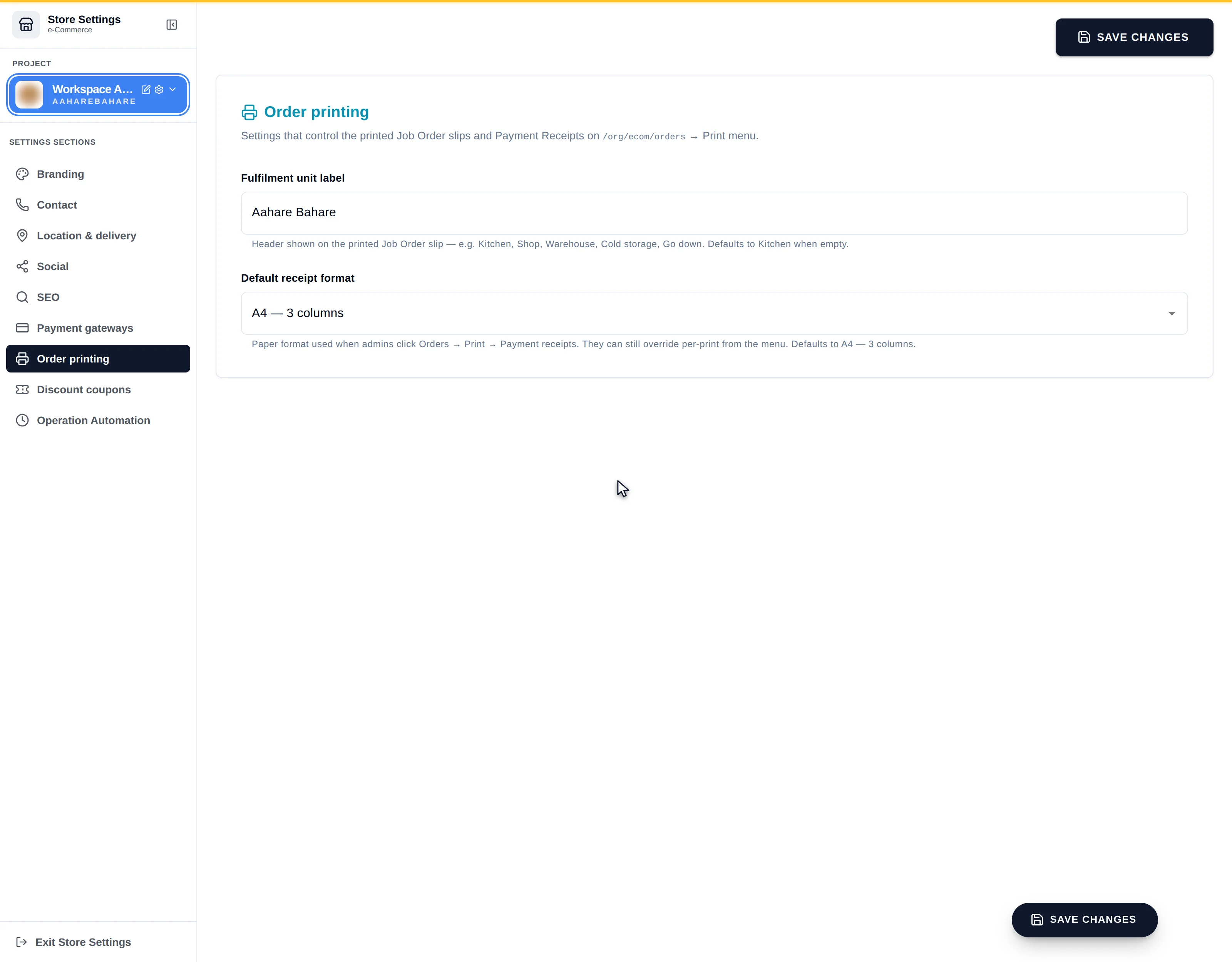

3. The section
4. Field reference
| Field | Control | Notes |
|---|---|---|
| Fulfilment unit label | Text | Placeholder Kitchen. What the station is called on a job order |
| Default receipt format | Select | Five formats — below |
The five receipt formats
| Value | Label | Intended for |
|---|---|---|
thermal_80 | Thermal 80mm | "Most-common POS thermal printer (80mm continuous roll)." |
thermal_58 | Thermal 58mm | "Narrower thermal — mobile / parking / taxi receipts." |
a4_full | A4 — full page | "One receipt per A4 page — formal tax invoice style." |
a4_3col | A4 — 3 columns | "Three receipts per A4, scissor between — gate handover." |
a5_half | A5 — half page | "One receipt per A5 page — mid-size shops, bigger fonts." |
a4_3col is the one people missThree receipts to a sheet, cut apart — designed for handing over at a gate or counter without a thermal printer. On a store printing dozens of small orders a day it is the difference between one sheet and three.
5. The admin contract
| Prerequisite | Without it |
|---|---|
| Manage Store Settings | Read-only |
| A printer matching the format | The format is a document layout, not a driver setting |
6. Downstream
Both fields are consumed by printing and export — the receipt print and the job-order print.
7. Don't confuse this with…
| Thing | Where | Why |
|---|---|---|
| Receipt | Printed for the customer | Money |
| Job order | Printed for the fulfilment station | Work |
| Tax invoice | Order documents | A formal document, not this layout |
| Export | Printing and export | A file, not paper |
8. Troubleshooting
| Symptom | Cause |
|---|---|
| Receipt prints as a narrow stripe on A4 | A thermal format is selected |
| Wasted roll per order | An A4 format on a thermal printer |
| The station name is wrong on job orders | Change Fulfilment unit label |
